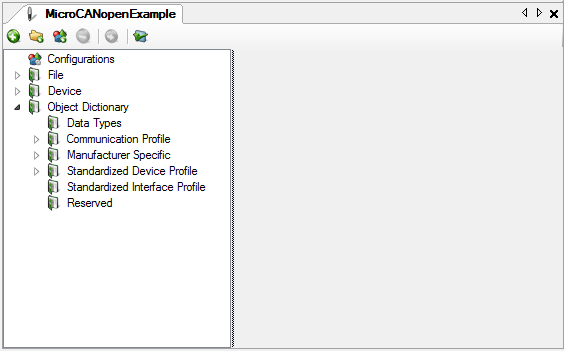

Simplify the creation, editing, and management of Electronic Datasheets (EDS/XDD) and Device Configuration Files (DCF/XDC) with CANopen Architect Standard. This comprehensive tool provides an intuitive user interface featuring an easy-to-navigate tree view for rapid project handling, including copy/paste and drag-and-drop capabilities.

Effortlessly generate accurate and detailed EDS/XDD files, crucial for integrating CANopen and CANopen FD nodes into networks and for documenting device capabilities clearly and consistently. Verify PDOs at-a-glance and generate CANopen stack configuration exports compatible with MicroCANopen Plus.

Ideal for managing complex projects with numerous similar node configurations, CANopen Architect Standard streamlines your workflow, ensuring efficiency and consistency across your CANopen and CANopen FD projects.

Users interested in advanced features like GUI PDO editing, a command line interface for mass operations or a flexible documentation generator should check out our Professional edition.

Features

The following is a list of features in CANopen Architect Standard. The list is not exhaustive but does give a good overview of the abilities of the software.

• Edit multiple EDS/XDDs/DCFs/XDCs at the same time, sharing data between them to define an entire network

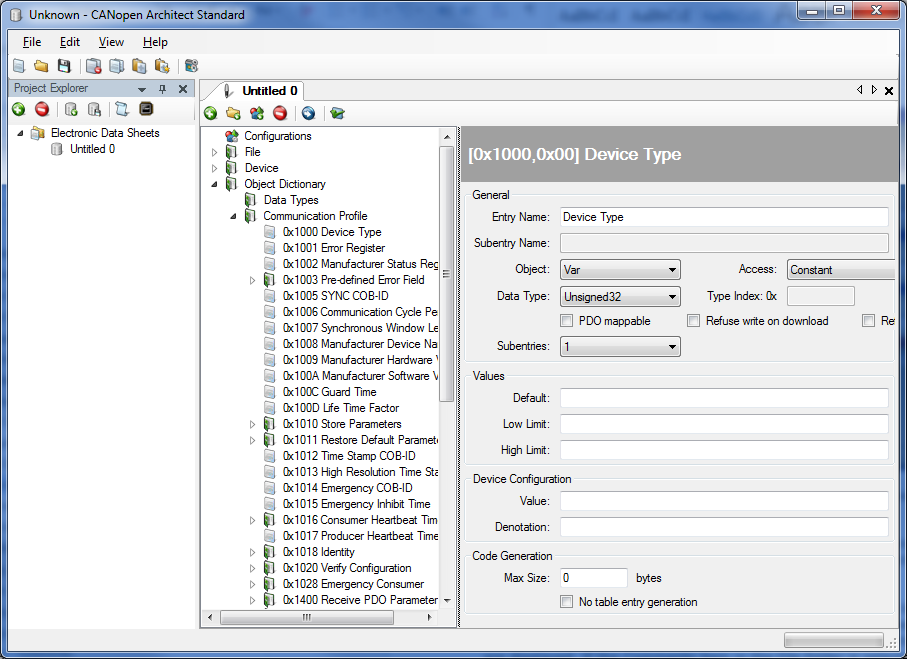

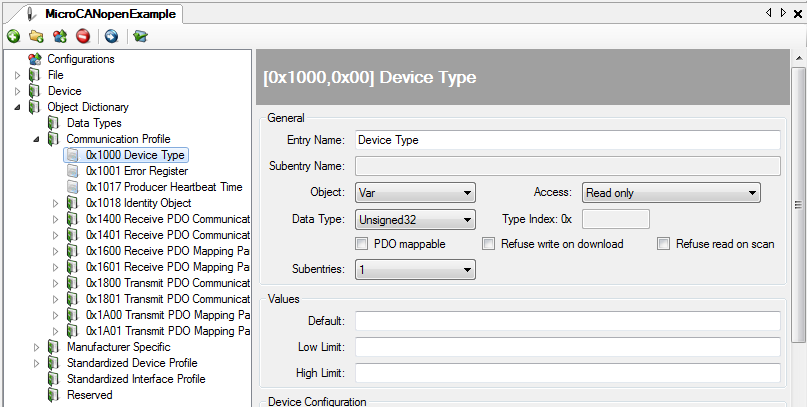

• Add, edit and delete entries in EDS Object Dictionary (OD), including powerful features to manage large array entries with many sub-entries with ease
• Cut, copy and paste and drag-and-drop any OD data between EDS
• User-defined grouping of entries allowing the groups to be enabled/disabled as a whole

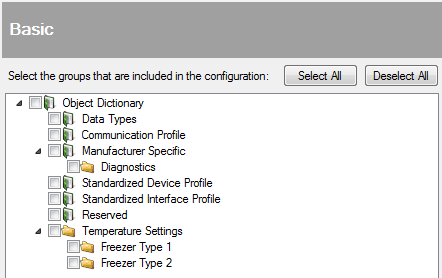

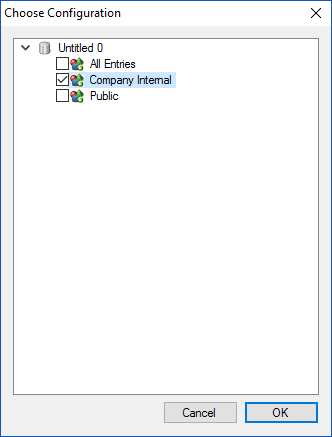

• User-defined configurations to combine groups for different situations
• Project libraries to allow reuse of OD sections in multiple EDS
• Import CANopen Database (CODB) files

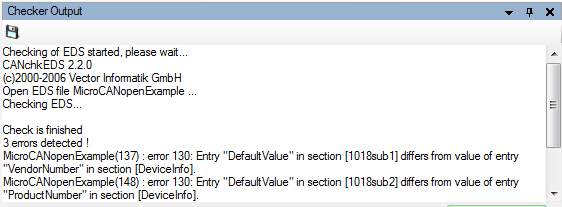

• Integrated EDS checker against CiA301 and device profiles as well as support for command-line based third-party EDS checkers
• Export to MicroCANopen Plus CANopen stack for quick and easy stack configuration
• Graphical PDO viewer

More Information, Screenshots and Comparison Tables

Visit the CANopen Architect product website for more information.

Pricing is per seat. Quantity discounts available.

Requirements

CANopen Architect runs on Windows© 7/8/8.1/10/11 (32-bit and 64-bit). Internet connection is required for activation.

Evaluation

Request a trial version and experience the features of CANopen Architect.
